請向右滑動
|

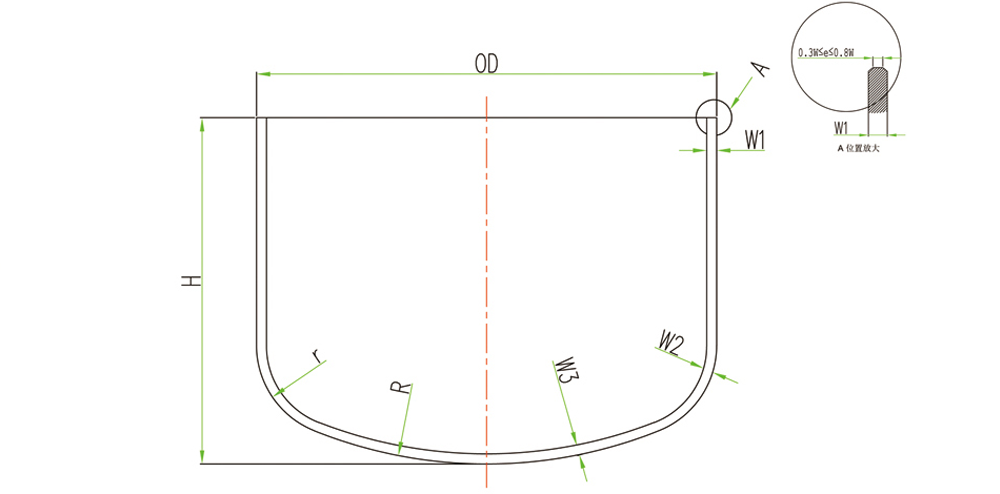

規格 |
外徑OD(mm) |
高度H(mm) |
厚度 T(mm) |
標準半徑R(mm) |
標準半徑r(mm) |
間隙Gap(mm) |
||
|
W1 |
W2 |
W3 |
||||||
|
14” |
355.6 ± 2.0 |
可根據客戶標準定制 |
8.5 ± 2.0 |
10.5 ± 2.0 |
8.5 ± 2.0 |
381 |
89 |
≤5 |
|
16” |
406.5 ± 2.5 |
9.0 ± 2.0 |
11.0 ± 2.0 |
9.0 ± 2.0 |
406 |
76 |
||
|
18” |
457.0 ± 2.5 |
9.5 ± 2.0 |
11.5 ± 2.0 |
9.5 ± 2.0 |
500 |
120 |
||
|
20” |
505.0 ± 3.0 |
10.0 ± 2.0 |
11.0 ± 2.0 |
10.0 ± 2.0 |
508 |
90 |
||
|
22” |
555.0 ± 3.0 |
11.0 ± 2.0 |
12.0 ± 2.0 |
11.0 ± 2.0 |
558 |
130 |
||
|
24” |
607.0 ± 3.0 |
12.0 ± 2.0 |
13.0 ± 2.0 |
12.0 ± 2.0 |
609 |
120 |
||
|
26” |
655.0 ± 3.0 |
12.0 ± 2.5 |
14.5 ± 2.5 |
12.0 ± 2.5 |
669 |
120 |
||
|
28” |
710.0 ± 3.0 |
12.0 ± 2.5 |
16.0 ± 2.5 |
12.0 ± 2.5 |
710 |
120 |
||
|
32” |
810.0 ± 3.0 |
14.0 ± 2.5 |
23.0 ± 2.5 |
14.0 ± 2.5 |
810 |
160 |
||
|
36” |
912.0 ± 3.0 |
18.0 ± 2.5 |
26.0 ± 2.5 |
18.0 ± 2.5 |
910 |
180 |
||
|
40” |
1016.0 ± 3.0 |
20.0 ± 3.0 |
30.0 ± 3.0 |
20.0 ± 3.0 |
1016 |
186 |
||
