Advantages of using quartz diversion tube
High purity - same material as quartz crucible, purity up to 99.99%.
|
|
|
|
|
|

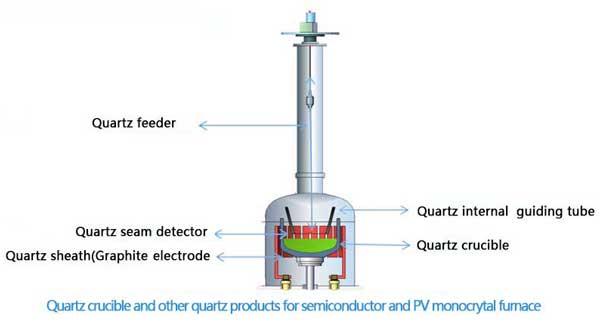

| NAME：Quartz feeder | NAME：Quartz cone | NAME：Quartz sheath | NAME：Quartz seam detector | NAME：Quartz guiding tube |
| PURPOSE：Used for refeeding when pulling monocrystalline silicon. |
PURPOSE：Used with quartz feeder when refeeding for monocrystalline silicon pulling. |
PURPOSE：Used to protect graphite electrode of single crystal furnace. |
PURPOSE：Used to measure the distance between the liquid surface and the guiding tube |
PURPOSE：Instead of graphite internal guiding in CZ method, quartz guiding tube has the advantage of high purity and low cost. |
|
SIZE AND TOLERANCE：We can produce according to the customer's requirements. |
SIZE AND TOLERANCE：We can produce according to the customer's requirements. |
SIZE AND TOLERANCE：We can produce according to the customer's requirements. |
SIZE AND TOLERANCE：We can produce according to the customer's requirements. |
SIZE AND TOLERANCE：We can produce according to the customer's requirements. |
|
|
|
| NAME：Quartz feeder | NAME：Quartz cone |
| PURPOSE：Used for refeeding when pulling monocrystalline silicon |
PURPOSE：Used with quartz feeder when refeeding for monocrystalline silicon pulling |
|
SIZE AND TOLERANCE：We can produce according to the customer's requirements. |
SIZE AND TOLERANCE：We can produce according to the customer's requirements. |
|
|
|
| NAME：Quartz sheath | NAME：Quartz seam detector |
|
PURPOSE：Used to protect graphite electrode of single crystal furnace. |
PURPOSE：Used to measure the distance between the liquid surface and the guiding tube |
|
SIZE AND TOLERANCE：We can produce according to the customer's requirements. |
SIZE AND TOLERANCE：We can produce according to the customer's requirements. |
|
|
|
| NAME：Quartz guiding tube |
|
|
PURPOSE：Instead of graphite internal guiding in CZ method, quartz guiding tube has the advantage of high purity and low cost. |
|
|
SIZE AND TOLERANCE：We can produce according to the customer's requirements. |
|
|
Product performance |
|||||||||
|
Typical value of impurity content(UNITE:PPM) |
|||||||||
| Ai | Ca | Cu | Fe | K | Na | Li | Mg | Cr | Mn |
| 16.3 | 1 | <0.05 | 0.5 | 1.2 | 1.1 | 0.9 | 0.2 | <0.05 | <0.05 |
|
Physical properties |
|||||||||
| Bulk density | Thermal conductivity | Coefficient of thermal expansion | softening point | Annealing point | Strain point | ||||
|
（g/cm3） |
（w/m·k，1000℃） |
（℃-1，1000℃） |
（℃） |
（℃） |
（℃） |
||||
|
2.2 |
2.28 |
5.5×10-7 |
1670 |
1210 |
1110 |
||||
